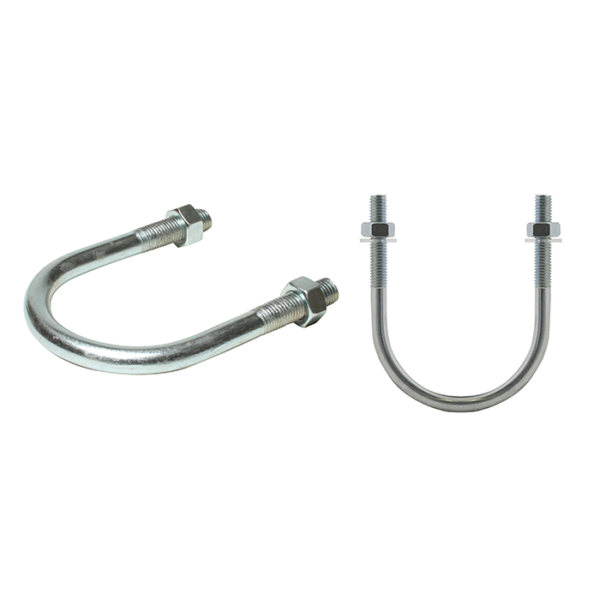

U Bolt
Application:
U-Bolts are used to secure piping to structural members. When the piping is below the
structural member, the U-Bolt provides vertical support and restricts lateral movement while
allowing for axial movement. When the piping system is above the structural member, the U-
Bolt restricts lateral movement and upward movement while allowing axial movement of the
piping.
Construction:
U-Bolt is provided with four standard hex nuts and has a longer straight threaded length.
Material : Mild steel
Maximum temperature : 399°C (750°F)
Finish : Electro-Galvanized, Hot Dip Galvanized, Plain
| Item Code | Nominal Pipe Size | Pipe Od In mm | Material Dimension in mm | Bolt Size | |||
|---|---|---|---|---|---|---|---|
| inch | mm | Rod Dia | Height | Thread Length | |||
| SFUC-15 | 1/2″ | 15 | 21.3 | 21 | 95 | 50 | M10 |
| SFUC-20 | 3/4″ | 20 | 26.7 | 27 | 77 | 50 | M10 |
| SFUC-25 | 1″ | 25 | 33.4 | 34 | 85 | 50 | M10 |
| SFUC-40 | 1-1/2″ | 40 | 48.2 | 48 | 100 | 50 | M10 |
| SFUC-50 | 2″ | 50 | 60.3 | 60 | 110 | 50 | M10 |
| SFUC-65 | 2-1/2” | 65 | 73.0 | 76 | 127 | 50 | M12 |
| SFUC-80 | 3″ | 80 | 88.9 | 89 | 140 | 50 | M12 |
| SFUC-100 | 4″ | 100 | 114.3 | 115 | 165 | 50 | M12 |
| SFUC-125 | 5″ | 125 | 141.3 | 140 | 190 | 50 | M12 |
| SFUC-150 | 6″ | 150 | 168.3 | 168 | 220 | 50 | M12 |
| SFUC-200 | 8″ | 200 | 219.1 | 219 | 295 | 75 | M16 |
| SFUC-250 | 10″ | 250 | 273.3 | 273 | 370 | 100 | M20 |
| SFUC-300 | 12″ | 300 | 323.8 | 324 | 420 | 100 | M20 |
| SFUC-350 | 14″ | 350 | 355.6 | 356 | 455 | 100 | M20 |
| SFUC-400 | 16″ | 400 | 406.4 | 406 | 505 | 100 | M20 |
| SFUC-450 | 18″ | 450 | 457.2 | 457 | 555 | 100 | M24 |
| SFUC-500 | 20″ | 500 | 508.0 | 508 | 605 | 100 | M24 |
| SFUC-600 | 24″ | 600 | 609.6 | 610 | 710 | 100 | M24 |
