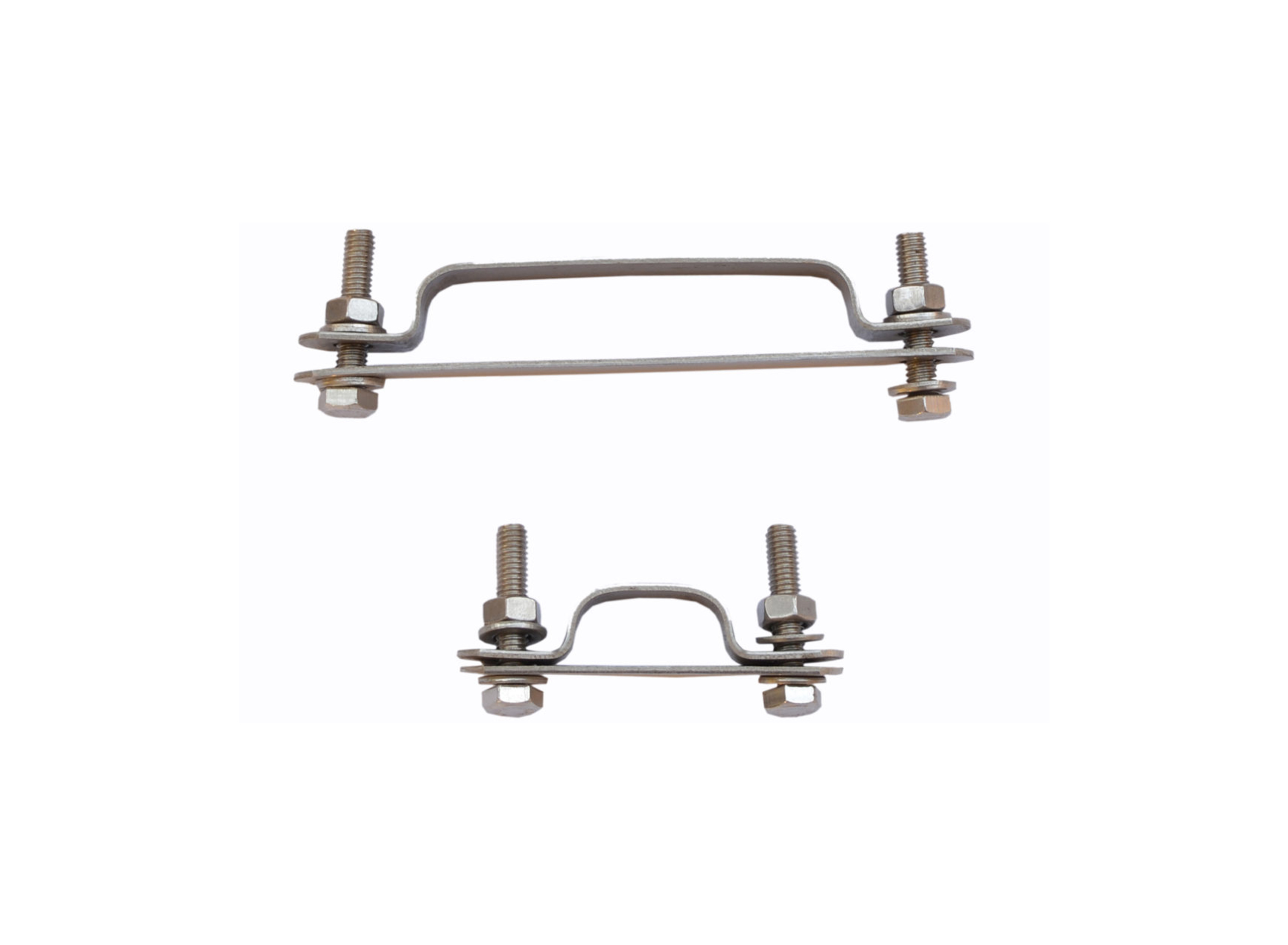

Tube Clamp SS-316
Type 316 has better corrosion resistance to most chemicals, salts and acids abs is more resistant to marine atmosphere because of an addition of 2.0 to 3.0% molybdenum. This addition improves the
corrosion resistance of austenitic steels and imparts hot strength characteristics. Another valuable property of type 316 is high creep strength at elevated temperatures. Type 316 has extensive use in chemical processing equipment when better corrosion resistance is required than is afforded by chromium nickel steels. Also 316 is specified for use with high purity products where product contamination must be held to a minimum. Typical application are food processing, chemical processing photographic pharmaceutical and textile finishing equipment and marine exterior trim.
corrosion resistance of austenitic steels and imparts hot strength characteristics. Another valuable property of type 316 is high creep strength at elevated temperatures. Type 316 has extensive use in chemical processing equipment when better corrosion resistance is required than is afforded by chromium nickel steels. Also 316 is specified for use with high purity products where product contamination must be held to a minimum. Typical application are food processing, chemical processing photographic pharmaceutical and textile finishing equipment and marine exterior trim.
| Item Code | For Tube | Length mm | Width mm | Thickness mm | Hex Bolt | Hex Nut | Washer |
|---|---|---|---|---|---|---|---|
| SFTC-02 | 2 | 68 | 15 | 1.6 | M6x30L | M6 | M6 |
| SFTC-04 | 4 | 68 | 15 | 1.6 | M6x30L | M6 | M6 |
| SFTC-06 | 6 | 120 | 15 | 1.6 | M6x30L | M6 | M6 |
