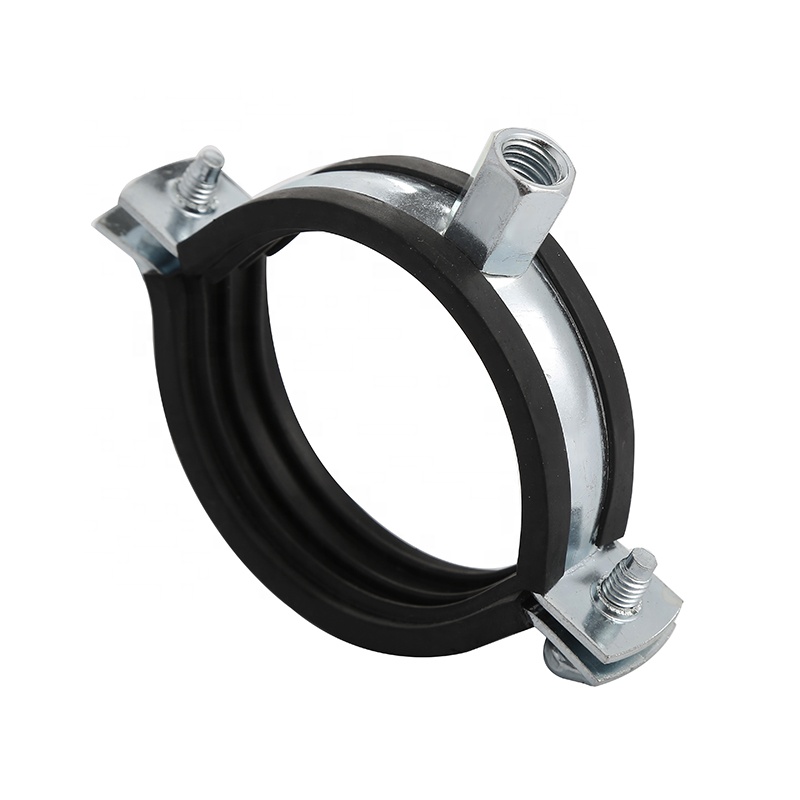

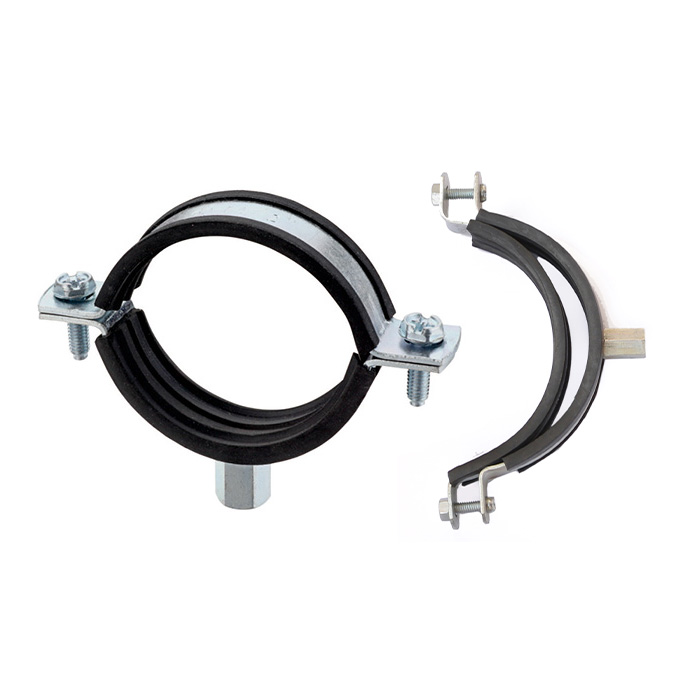

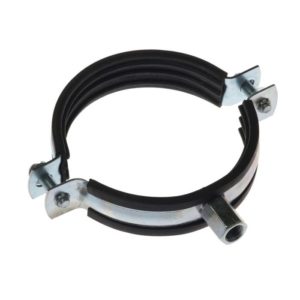

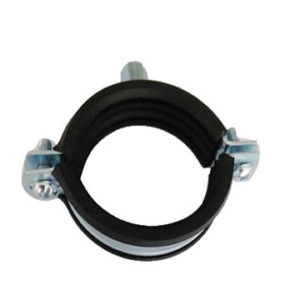

Pipe Hanger with Rubber (EPDM Lining)
Application:
Pipe Hanger with EPDM Lining is recommended for non-insulated stationary pipelines
in a horizontal position. It can be used for supporting pipes along with the roof.
Construction:
Pipe Hanger with EPDM Lining consists of a piece of mild steel shaped to wrap around
the pipe. The selection of the proper Pipe Hanger with EPDM Lining depends upon the
temperature of the piping system and the load to be carried. It permits installation
before and after the pipe is in place. Reduces noise up to 18 dB.
Material: Mild Steel
Minimum Temperature: -20°C
Maximum Temperature: 110°C
Finish: Electro-Galvanized
Product Table
| Sr. No. | Part Number | Trade Size | Pipe OD In Inches |
Pipe OD In mm |
|---|---|---|---|---|
| 1 | SFPCR-050 | 1/2″ | 0.840 | 21.336 |
| 2 | SFPCR-075 | 3/4″ | 1.050 | 26.670 |
| 3 | SFPCR-100 | 1″ | 1.315 | 33.401 |
| 4 | SFPCR-125 | 1-1/4″ | 1.660 | 42.164 |
| 5 | SFPCR-150 | 1-1/2″ | 1.900 | 48.260 |
| 6 | SFPCR-200 | 2″ | 2.375 | 60.325 |
| 7 | SFPCR-250 | 2-1/2″ | 2.875 | 73.025 |
| 8 | SFPCR-300 | 3″ | 3.500 | 88.900 |
| 9 | SFPCR-350 | 3-1/2″ | 4.000 | 101.600 |
| 10 | SFPCR-400 | 4″ | 4.500 | 114.300 |
| 11 | SFPCR-600 | 6″ | 6.625 | 168.275 |
| 12 | SFPCR-800 | 8″ | 8.625 | 219.075 |
| 13 | SFPCR-1000 | 10″ | 10.750 | 273.050 |
