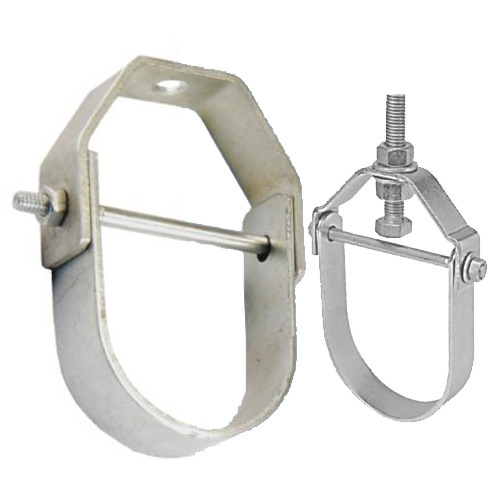

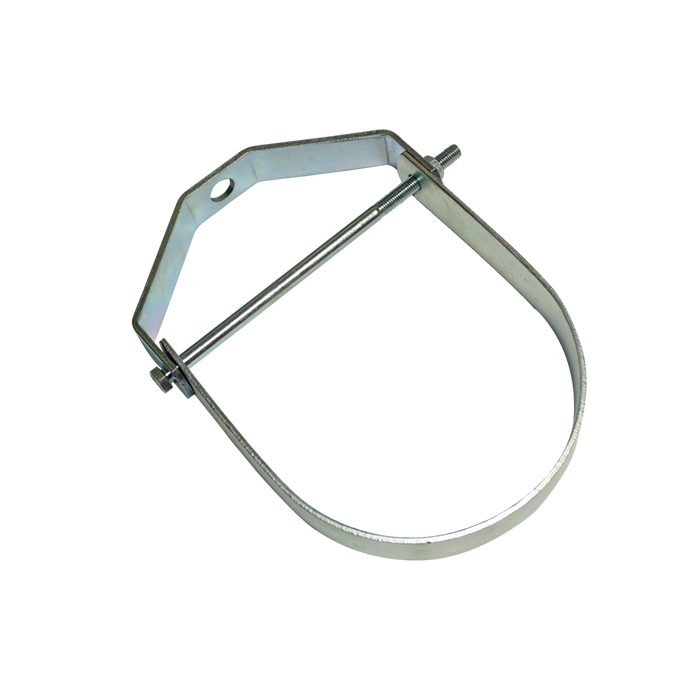

Clevis Hanger Clamp
Application:
Clevis hangers are pipe supports that are designed to secure hanging or elevated pipe runs. If you need to suspend piping from elevated beams or the ceiling, clevis hangers are a lifesaver. It provides for sizeable loads to be supported and adjustment depending upon pipe diameter. The lower nut adjusts the piping to the proper elevation and the upper nut, when locked into position which prevents loosening due to vibration.
Construction:
Generally, clevis hangers consist of a yoke and a support strap made from shaped Mild steel strip and a joining bolt. 15 percent swing in either direction allows pipe to easily feed through. It also have a metallic loop to cradle your pipe. This cradle leaves room for vertical adjustment and harnesses your pipes securely in the air. Through which pipe will not pinch when installing. Engineering design aligns bolt holes for quicker installation.
Material : Mild steel
Maximum temperature : 343° C (650° F).
Finish : Electro-Galvanized.
Product Table
| Sr. No | Part Number | Trade Size | Pipe OD in inches | Pipe OD in mm |
|---|---|---|---|---|
| 1 | SFCHC-050 | 1/2″ | 0.840 | 21.336 |
| 2 | SFCHC-075 | 3/4″ | 1.050 | 26.670 |
| 3 | SFCHC-100 | 1” | 1.315 | 33.401 |
| 4 | SFCHC-125 | 1-1/4” | 1.660 | 42.164 |
| 5 | SFCHC-150 | 1-1/2” | 1.900 | 48.260 |
| 6 | SFCHC-200 | 2” | 2.375 | 60.325 |
| 7 | SFCHC-250 | 2-1/2” | 2.875 | 73.025 |
| 8 | SFCHC-300 | 3” | 3.500 | 88.900 |
| 9 | SFCHC-350 | 3-1/2” | 4.000 | 101.600 |
| 10 | SFCHC-400 | 4” | 4.500 | 114.300 |
| 11 | SFCHC-600 | 6” | 6.625 | 168.275 |
| 12 | SFCHC-800 | 8” | 8.625 | 219.075 |
| 13 | SFCHC-1000 | 10” | 10.750 | 273.050 |
