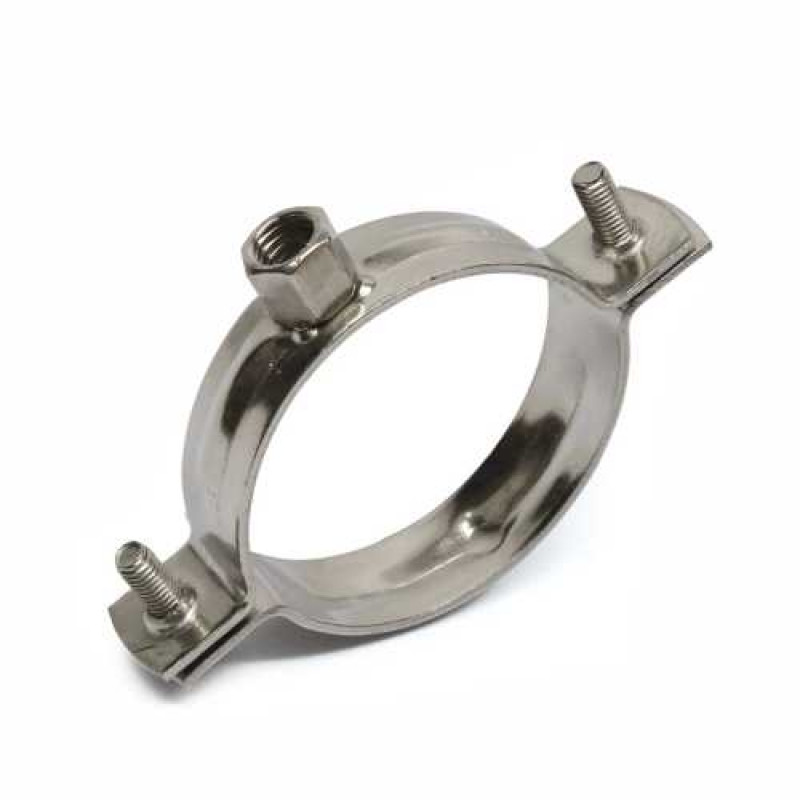

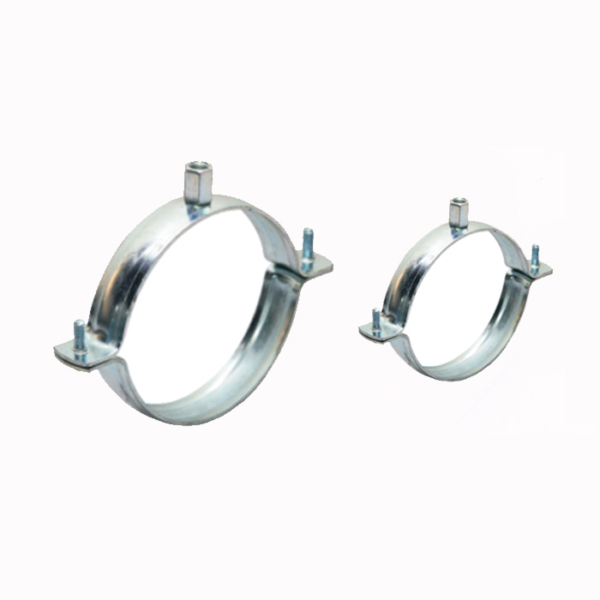

Pipe Hanger Without Rubber (EPDM Lining)
Application:
Pipe Hanger is recommended for non-insulated stationary pipelines in a horizontal
or vertical position. It can be used for supporting pipes along with the roof as
well as walls.
Construction:
Pipe Hanger consists of a piece of mild steel shaped to wrap around the pipe.
The selection of the Pipe Clamp depends upon the temperature of the piping system
and the load to be carried. It permits installation before and after the pipe is
in place.
Material: Mild Steel
Maximum Temperature: 343°C (650°F)
Finish: Electro-Galvanized
Product Table
| Sr. No. | Part Number | Trade Size | Pipe OD In Inches |
Pipe OD In mm |
|---|---|---|---|---|
| 1 | SFPC-050 | 1/2″ | 0.840 | 21.336 |
| 2 | SFPC-075 | 3/4″ | 1.050 | 26.670 |
| 3 | SFPC-100 | 1″ | 1.315 | 33.401 |
| 4 | SFPC-125 | 1-1/4″ | 1.660 | 42.164 |
| 5 | SFPC-150 | 1-1/2″ | 1.900 | 48.260 |
| 6 | SFPC-200 | 2″ | 2.375 | 60.325 |
| 7 | SFPC-250 | 2-1/2″ | 2.875 | 73.025 |
| 8 | SFPC-300 | 3″ | 3.500 | 88.900 |
| 9 | SFPC-350 | 3-1/2″ | 4.000 | 101.600 |
| 10 | SFPC-400 | 4″ | 4.500 | 114.300 |
| 11 | SFPC-600 | 6″ | 6.625 | 168.275 |
| 12 | SFPC-800 | 8″ | 8.625 | 219.075 |
| 13 | SFPC-100 | 10″ | 10.750 | 273.050 |
