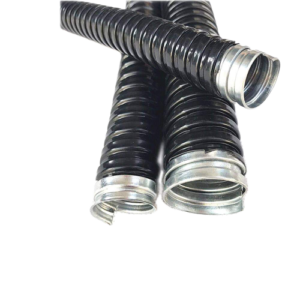

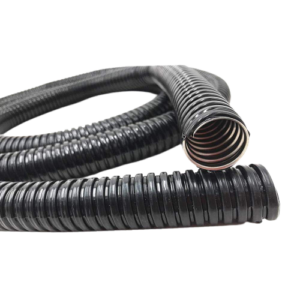

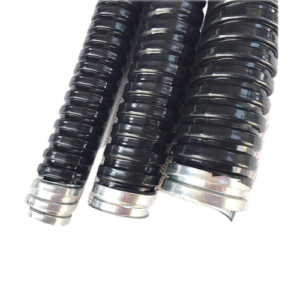

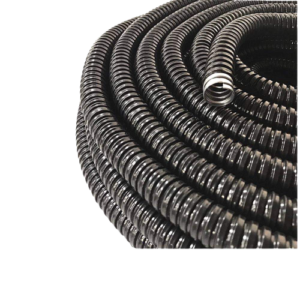

Galvanized Steel Flexible Conduit With PVC Coated

Enquiry
Download PDF
This type of conduit is extremely versatile and can be used in most industrial and commercial
environments. This Galvanized Steel Flexible Conduits with PVC coated can be used for mechanical
protection of cable and wires. The PVC coating affords degree of weather proofing and protection.

Application:

  • Airlines
  • Areas related to sparks and heat (welding, foundries etc.).
  • Best fit in places where water tightness is required and for tight-spot installation.
  • Outdoor installations.
  • Tunnels, Commercial & Public buildings
  • Under floor apps for floor boxes/computers.
  • Utilized for connecting machines to control Metro Stations, CCTV cameras and Elevators etc.
  • Utilized as the best mechanical protection for insulated wires and electrical cables that are
    functional in normal atmospheric climate.

CONSTRUCTION :

  • Galvanized steel strip, which is then profiled and then helically wound (no cotton packing)
    into a flexible conduit. Afterwards, PVC is coated with a uniform thickness of low smoke and
    fume.

SPECIFICATION:

  • Highly Flexible.
  • Highly Flame Retardant.
  • High Mechanical Power/Strength.
  • Low Smoke Density.
  • Water Resistant.
  • IP Rating: IP-65.

WORKING TEMPERATURE:

  • Min. -20° C Max. +80° C.
  • Short Period +90° C.

COLOUR:

  • Standard Black.
  • Other Colours on request.

Product Table

Galvanized Steel Flexible Conduit With PVC Coated
Sr. No. Part Number in mm Internal Diameter in mm Outer Diameter in mm Min. Bending Radius in mm Coil Length(Metre/Ft)
1. SFCC-10 7.00 11.00 18 25-30-50
2. SFCC-12 10.00 14.00 20 25-30-50
3. SFCC-16 13.00 17.50 25 25-30-50
4. SFCC-20 17.00 21.50 30 25-30-50
5. SFCC-25 21.50 26.50 35 25-30
6. SFCC-32 28.00 33.50 52 15-25
7. SFCC-40 37.00 42.50 72 15-25
8. SFCC-50 47.00 52.50 82 10-25


Galvanized Steel Flexible Conduit With PVC Coated
Sr. No. Part Number in inch Internal Diameter in mm Outer Diameter in mm Min. Bending Radius in mm Coil Length(Metre/Ft)
1. SFCC-12 12.50 17.00 28 15-25-30
2. SFCC-16 16.00 20.00 33 15-25-30
3. SFCC-20 20.00 24.50 37 15-25-30
4. SFCC-25 25.00 29.50 45 15-25-30
5. SFCC-32 32.00 37.00 68 15-25
6. SFCC-38 38.00 43.00 80 10-15
7. SFCC-50 50.00 55.00 88 10-15
Category: 1.Flexible Conduit
